Among the thermoelectric materials that are the core materials of thermoelectric elements, Bi2Te3 metal is strongly oxidized in the atmosphere Especially for metal produced by existing zone melting process The strength of the inner metal is less When cutting Bi2Te3 produced by bar type ingot according to the specific purpose of 0.8mm ~ 2mm, it may cause defective operation due to mechanical impact of inner metal according to 5 cutting processes in total.

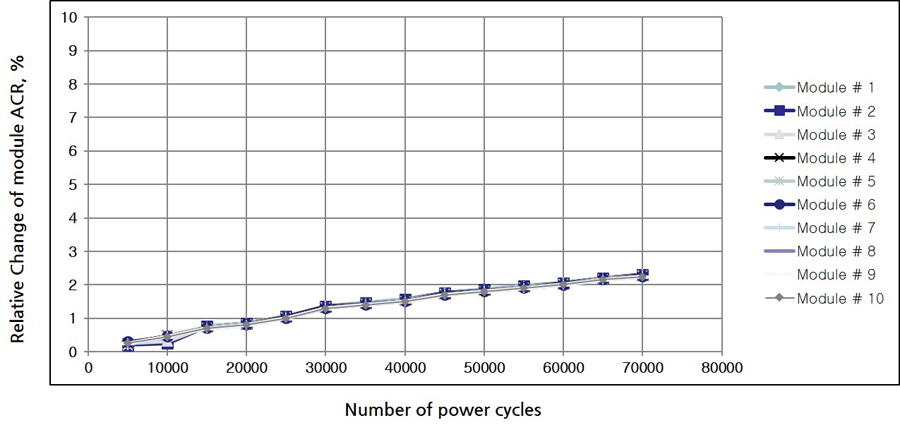

Accordingly, there are various systems for verifying durability of thermoelectric elements It is common practice to verify the durability of a thermoelectric device by applying electrical shock and thermal shock through a cycling test.

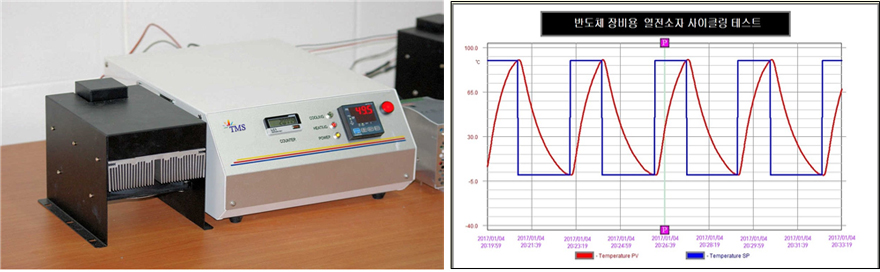

For thermoelectric elements of cold and warm, a temperature sensor is placed on a cooling device equipped with a thermoelectric element for durability measurement Change the temperature of the thermoelectric element from 0 ° C to 90 ° C to 0 ° C as one cycle and continue to perform cycling tests for your standard number of times.
Division | T MS CYCL-001A | |||
---|---|---|---|---|
Generals | Installation | In and out door | ||
Operation | -20 ~ 50 Celsius(℃) | |||
Humidity | 40 ~ 80 % RH | |||
Input Current | AC Free Volt ( 2 PH AC 220 ) | |||
Heatsink Temp control range | -20 ℃ ~ 150 ℃ | |||
Operation Methods | Auto setting or manual | |||
Accuracy | ± 0.1 ℃ | |||
Operation Voltage | MAX DC 48V / 20 VA | |||
Operation Current | MAX 20 A | |||
AC Power Input | 1Kwatt | |||
Safety | Over Current Stopper | |||
High temp FUSE | ||||
Operation | Operation | Operation Signal | Operation | Yellow Light |
Temp | Green Light | |||
Heating | RED Light | |||
Now Temp | Upper Number | |||
Target Temp | Down Number | |||
Temp | Temp Sensor | PT 100 Ohm (Changable) | ||
Operation | manual | Possible | ||
PC Control | Possible( Temp data save, printing ) | |||
Running Option | Communication Port | 232/422/485 | ||
Auto Graph save | Possible | |||
Cysling Temp setting | Possible | |||
Auto program Control | Possible ( Without Operator ) | |||
Temp data saving | EXCEL Saving | |||
Data Output | PC Monitor | |||
Printer | ||||
Others | System colour | Ivory, yellow | ||
Dimension | testing Engine | 300 x 300 x 500 mm (Changable) | ||
Controller | One Body with test System | |||
Weight | 10 Kg |
